    Profile

    Providing engineers with a high degree of design freedom.

    GRP composites offer a favourable stiffness and strength-to-weight ratio, allowing them to perform effectively in demanding conditions where both strength and reduced weight are needed.

    d² Dura Profile is a collection of heavy duty, corrosion resistant fibreglass profiles suitable for a wide range of applications. It’s ability to guard against deterioration from industrial chemicals and environmental factors make it a logical and cost-effective alternative to carbon, steel, aluminium, wood or other conventional materials.

    We carry a large stock holding of profile, including standard Angle, Channel, Box and Tube sections, all of which are designed to meet or exceed the higher performance E23 grade requirement of the BS EN 13706 standard (which covers the specification of GRP pultruded profiles).

    If you’re looking for safety handrailing, we can provide two GRP solutions – Fabrication Handrailing and Key Clamp Modular Handrailing. By seamlessly integrating either solution with our d² Dura Grating and Dura Profile components, a secure and durable working platform is ensured.

    3D Model: Dura Profile WFB 152

    The d² difference

    Dura Profile is part of our d² range of enhanced performance products.

    Safer.

    We push boundaries

    We don’t leave performance to chance; we engineer it into every d² Dura Profile structural beam and component section we manufacture, so you can design safe GRP structures in total confidence.

    Stronger.

    Unrivalled performance-to-weight ratio

    On average, d² Dura Profiles exceed the challenging E23 Grade defined by the Pultrusion Standard BS EN 13706 by an astounding 50%. That’s not just a modest improvement; it’s a revolution in performance.

    Greener.

    Delivering sustainable change

    Our unique GRP profile designs use less raw material without compromising strength or performance, resulting in major carbon savings of up to 50% versus competitor products. We’ll even re-purpose products for you at the end of their use, making us the greenest choice.

    Proven.

    All the data you need, instantly

    We delve deep into the properties of the microstructures of d² Dura Profiles as well as our fully pultruded lengths to determine their strength characteristics so you can make decisions based on fact, not guesswork.

    Applications

    • 1Structural Profiles
    • 2Safety Handrailing
    • 3Access Structures

    • Structural Profiles

      Structural Profiles

      d² Dura Profile heavy-duty beam sections are a revolutionary innovation in the industry. The superior strength-to-weight ratio allows for the use of smaller or fewer components without compromising performance. Angle, Channel, Beam, Box and Tube are stocked as standard with options for special order.

      • A logical and cost-effective alternative to carbon, steel, aluminium and wood.
      • Being up to 50% lighter than steel translates to an equivalent reduction in carbon footprint.
      • Profiles can be cut to specific sizes by our fabrication team.

      Read more

    • Safety Handrailing

      GRP elevated platform

      Safety Handrailing

      Our Fabrication Handrailing boasts the market-leading d² Dura Profile components, while our Key Clamp Modular Handrailing uses Top Rail, Mid Rail, and Upright Tubular Components. Both options offer installers the advantage of straightforward construction and swift installation.

      • Simple component construction with pre-assembled options.
      • GRP’s non-conductive properties make it suitable for electrified environments.
      • Lightweight but strong sections resulting in ease of transport and handling.

      Read more

    • Access Structures

      Access steps with handrail

      Access Structures

      Suited to all types of industry, our structures are made from our market-leading d² Dura Profile, Dura Grating and Dura Handrailing components. We offer standard and bespoke solutions from design and manufacture through to delivery and installtion on site.

      • All flooring components of our fabrications have been anti-slip tested.
      • Our skilled fabricators can construct the most complex of projects.
      • Strong belt and braces support structure.

      Read more

    d² Dura Profiles

    Angle 50 x 50 x 6.35

    (mm)
    Length: 6000
    Height: 50
    Width: 50
    Thickness: 6.35
    Colour: Dark Grey

    Angle 76 x 76 x 9.5

    (mm)
    Length: 6000
    Height: 76
    Width: 76
    Thickness: 9.5
    Colour: Dark Grey

    Angle 102 x 102 x 12.7

    (mm)
    Length: 6000
    Height: 102
    Width: 102
    Thickness: 12.7
    Colour: Dark Grey

    Angle 152 x 152 x 12.7

    (mm)
    Length: 6000
    Height: 152
    Width: 152
    Thickness: 12.7
    Colour: Dark Grey

    Box 50 x 50 x 6.35

    (mm)
    Length: 6000
    Height: 50
    Width: 50
    Thickness: 6.4
    Colour: Dark Grey & Yellow

    Box 64 x 64 x 6.4

    (mm)
    Length: 6000
    Height: 64
    Width: 64
    Thickness: 6.4
    Colour: Dark Grey & Yellow

    Box 76 x 76 x 6.4

    (mm)
    Length: 6000
    Height: 76
    Width: 76
    Thickness: 6.4
    Colour: Dark Grey

    Box 101 x 101 x 8

    (mm)
    Length: 6000
    Height: 101
    Width: 101
    Thickness: 8
    Colour: Dark Grey

    Channel 100 x 60 x 5.5

    (mm)
    Length: 6000
    Height: 100
    Width: 60
    Thickness: 5.5
    Colour: Dark Grey

    Channel 203 x 55 x 9.5

    (mm)
    Length: 6000
    Height: 203
    Width: 55
    Thickness: 9.5
    Colour: Dark Grey

    Channel 254 x 72 x 12.7

    (mm)
    Length: 6000
    Height: 254
    Width: 72
    Thickness: 12.7
    Colour: Dark Grey

    Box Channel 203 x 55 x 8

    (mm)
    Length: 6000
    Height: 55
    Width: 203
    Thickness: 8
    Depth: 60
    Colour: Dark Grey

    Tube 38

    (mm)
    Length: 6000
    Diameter: 38
    Wall Thickness: 3
    Colour: Dark Grey & Yellow

    Tube 50

    (mm)
    Length: 6000
    Diameter: 50
    Wall Thickness: 6
    Colour: Dark Grey & Yellow

    Ladder Rung 34 x 19

    (mm)
    Length: 6000
    Diameter: 34
    Wall Thickness: 10 +5
    Colour: Yellow

    WFB 152 x 152 x 9.5

    (mm)
    Length: 6000
    Height: 152
    Width: 152
    Thickness: 9.5
    Colour: Dark Grey

    WFB 203 x 203 x 12.7

    (mm)
    Length: 6000
    Height: 203
    Width: 203
    Thickness: 12.7
    Colour: Dark Grey

    WFB 305 x 305 x 12.7

    (mm)
    Length: 6000
    Height: 305
    Width: 305
    Thickness: 12.7
    Colour: Dark Grey

    Variable I-Beam Female 75 x 170

    (mm)
    Length: 6010
    Height: 363
    Width: 170
    Thickness: Base 10, Upright 8
    Colour: Dark Grey

    Variable I-Beam Male 350 x 170

    (mm)
    Length: 6010
    Height: 363
    Width: 170
    Thickness: Base 10, Upright 12.7
    Colour: Dark Grey

    Kickplate

    (mm)
    Length: 3010
    Height: 13
    Width: 150
    Thickness: 4
    Colour: Dark Grey & Yellow

    Top Rail 71 x 60 x 4.5

    (mm)
    Length: 6000
    Height: 60
    Width: 4.3
    Wall Thickness: 4.5
    Colour: Dark Grey & Yellow

    12mm Flat Sheet

    (mm)
    Length: 3000
    Width: 1220
    Thickness: 12
    Colour: Dark Grey

    Projects

    Find out how our market-leading composite products and applications are reshaping the industry.

    Load more Loading...

    Resources

    Step Over Configurator
    GRP Data Analysis Tool
    Testing & Certification

    FAQs

    d² Dura Profile is a comprehensive collection of structural profile sections made from high performance Glass Reinforced Polymer (GRP) commonly used in construction and engineering applications where a combination of strength, durability, and corrosion resistance is required.

    Exclusive to Dura Composites, Dura Profile beams are used as structural components in place of traditional materials like steel or wood.

    European Standard EN 13706 specifies the minimum requirements for the quality, tolerances, strength, stiffness and surface of structural profiles. The standard divides pultruded structural profiles into two classes – E23 and E17, with E23 having the most stringent requirements for quality. On average, d² Dura Profiles exceed the challenging E23 Grade by an impressive 50%, allowing designers to select profiles that are either twice as strong or a third smaller when compared to GRP competitors, adding effieicny and cost saving to a project. Not only this, but d² Dura Profile can also be half the weight of their steel counterparts too, making them easier to lift, transport and install.

    Being up to 50% lighter translates to an equivalent reduction in the carbon footprint of Dura Profiles, making our structural beams a sustainable choice for environmentally conscious projects. In the case of our GRP channel for example, the d² Dura Profile 203 Channel can be used in place of a 125x65x15 Steel Channel section, achieving a 37% carbon reduction. And what’s more, we’re the first GRP company in our industry to offer an end-of-life and waste GRP solution that doesn’t rely on landfill and incineration.

    Yes, there is. We have an Environmental Product Declaration (EPD) readily available for our pultruded d² Dura Profile. This document provides transparent and verified information about the environmental impact of our product throughout its lifecycle.

    Download here

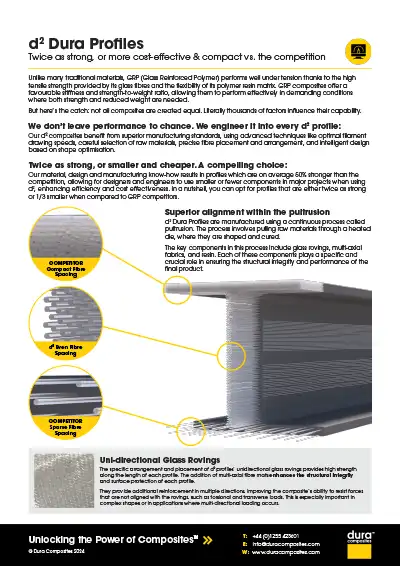

    d2-Dura-Profiles-Performance-Sheet-Dura-Composites

    Performance Sheets

    d² Dura Profiles

    We don’t leave performance to chance. We engineer it into every d² profile: Our d²…

    Download
    EPD_Pultruded Grating

    Certificates

    EPD For Pultruded GRP

    This is an Environmental Product Declaration in accordance with EN 15804+A2 & ISO 14025/ISO 21930…

    Download
    Dura Profile Technical Manual Dura Composites

    Installation Manuals

    Dura Profile

    This Dura Profile Install Manual enables designers and contractors to gather the necessary material data,…

    Download
    Handrailing Technical Manual Dura Composites

    Installation Manuals

    Dura Key Clamp Handrailing

    We offer a high quality, round tubular GRP Handrail system, complete with all fittings. Dura…

    Download
    Front Cover Image For Anti-Slip Flooring & Handrail Product For Industry Brochure Dura Composites

    Brochures

    Anti-Slip Flooring & Handrail Products for Industry

    High performance composite flooring and walkway solutions including trench covers, A2 fire rated decking, access…

    Download
    Front Cover Image For Access Structures Brochure Dura Composites

    Brochures

    d² GRP Access Structures

    Cost-effective, practical and safe GRP platforms, walkways, access structures & bespoke fabrications constructed from our…

    Download
